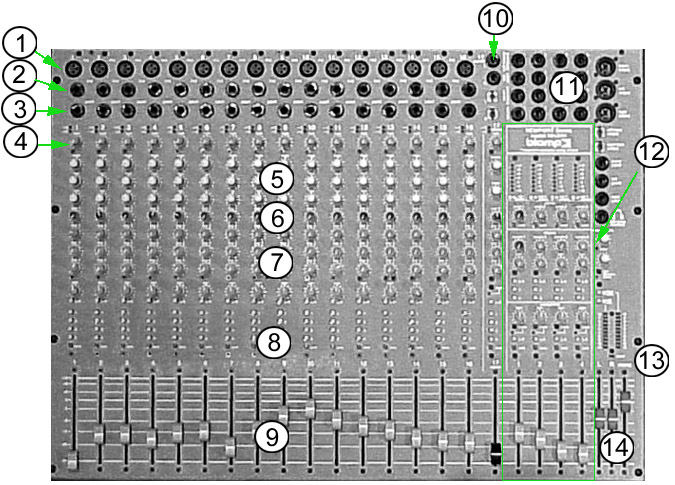

XLR MICROPHONE CONNECTORS

These 3-pin XLR jacks are for connection of signals, from low-impedance microphones and direct boxes, to the respective channel inputs.

1/4" PHONO LINE LEVEL CONNECTORS

These 3-conductor 1/4" phone jacks are for connection of signals, from line level devices, to the respective channel inputs.

1/4" PHONO INSERT/PATCH CONNECTORS

These 3-conductor 1/4" phone jacks are post-EQ/pre-fader insert points, for connection of outboard signal processing devices to the respective channels.

CHANNEL INPUT TRIM

This control provides 40dB gain adjustment to compensate for different input signal levels.

3 BAND EQUALIZER

Definition needed.

AUXILARY SENDS

These controls adjust the level of post-fader channel signal sent to the Send 1 & Send 2 outputs and adjust the level of pre-fader channel sent to the Send 3 & Send 4 outputs.

PAN

This control determines the amount of channel signal received by the Left or Right Main, when selected with the Main Assign switch.

OUTPUT ASSIGN SWITCHES

Definition needed.

CHANNEL FADER

This 100mm slide control adjusts the level of channel signal sent to all selected submasters and Left & Right Mains, as well as to all post-fader aux sends.

STEREO CHANNEL

Definition needed.

XLR AND 1/4" PHONO OUTPUT CONNECTIONS

Definition needed.

SUBMASTER SECTION

When depressed, these switches route a mono sum of the left & right post-fader channel signals to the respective submasters.

MAIN OUTPUT METERS

This seven-segment, peak reading LED meter displays signal level for the respective Submaster output or Send output, depending upon the position of the Meter Select Switch.

MAIN L/R/MONO OUTPUT FADER



These 100mm slide controls adjust the level of signal sent to the respective Main outputs, as well as to the Meter Select switches.
